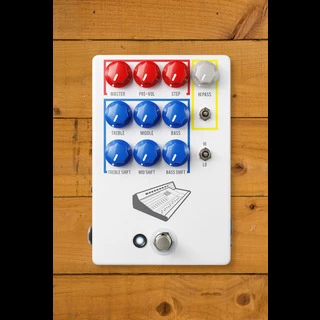

JHS Pedals Colour Box V2 | Preamp/EQ/Overdrive/Distortion/Fuzz/DI Box

VERSION 2 EMERGES

The Colour Box V2 has all the same functionality of the V1 with many new and improved additions like expanded EQ controls, a Hi/Lo switch for massive clean headroom, and the ability to pass phantom power to your condenser mics.

The most significant improvements are:

• Addition of an Output transformer
• Safely Passes 48V Phantom Power
• EQ Shift Knobs for precision EQ control
• Hi/Lo Switch for ultra clean headroom
• 100% available clean signal even on acoustic guitar
• Silent switching, aka no “switch-pop”
• Runs on standard 9V DC Neg power

FEATURES & CONTROLS

The Colour Box V2 has a new Hi / Lo switch to control the amount of clean headroom you have available. In the Lo mode, you will easily be able to get ultra clean sounds without breakup. Lo Mode is excellent for tone shaping when distortion is not needed. In the Hi mode, the Colour Box V2 will distort much more readily, giving you a broad spectrum of overdrive, distortion, and fuzz sounds.

In addition to the Hi / Lo gain switch, there is a -20dB pad switch on the right side of the Colour Box V2. This function only works when in XLR input mode and can help tame the volume for high output microphones.

MOST POWERFUL EQ YET

The EQ section in blue has three new Shift controls correlating to its standard Treble, Middle and Bass controls. The classically labeled EQ knobs adjust the amount of frequencies that get boosted and cut, while the Shift knobs adjust the range of frequencies that the Treble, Middle, and Bass knobs control.

The Hi-Pass section is enabled by the toggle switch below the Hi-Pass knob. Just flip it up to engage the Hi-Pass knob. The HPF is a 2nd order 6dB per octave highpass filter. The -3dB cutoff freq (the frequency at which the filter starts to act) can be adjusted from 160Hz to 650Hz.

XLR AND OUTPUT

The Colour Box V2 has a combination XLR and 1/4″ input jack to use either an instrument or microphone. Select your input with the input selector switch on the right side of the pedal labelled INST/XLR.
